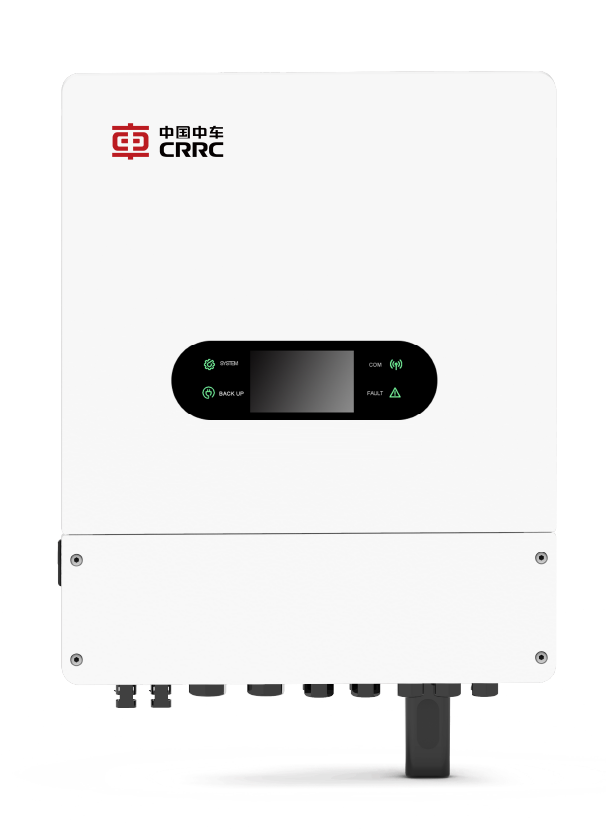

tPower-NM5-(3-6)K-SH
PRODUCT
FEATURES
Enjoy Green Power
Multiple power supply options, enjoy green power
Compatible with mainstream household module perfectly
High conversion efficiency, wide voltage range, long-lasting power generation, and higher returns
Safeguardinging
Build-in Type II DC & AC SPD
Intelligent arc detection, multiple security protections
Switching rapidly under the power failure and ensuring household power supply
Smart Energy
Multiple woking modes, adapt to various scenarios
Support cascaded I-V scanning, intelligent diagnosis,locate faults quickly
CRRC FORESEE Cloud Service, monitoring the data at anytime & anywhere
Intelligent O&M, remote one-click upgrade
TECHNICAL PARAMETERS
| Product Model | tPower-NM5-3K-SH | tPower-NM5-3.6K-SH | tPower-NM5-4K-SH | tPower-NM5-4.6K-SH | tPower-NM5-5K-SH | tPower-NM5-6K-SH | |
|---|---|---|---|---|---|---|---|
| Battery | |||||||
| Battery | Lithium battery | ||||||
| Rated battery voltage | 48V(44~57V) | ||||||
| Max.charging current | 75A | 90A | 100A | 110A | 120A | 120A | |
| Max.discharging current | 75A | 90A | 100A | 110A | 120A | 120A | |
| Max.charging power | 3300W | 3960W | 4400W | 5000W | 5500W | 6000W | |
| Max.discharging power | 3300W | 3960W | 4400W | 5000W | 5500W | 6000W | |
| DC | |||||||
| Max.input power | 3900W | 4700W | 5200W | 6000W | 6500W | 7500W | |
| Max.input voltage | 500V | ||||||
| Input voltage range | 100~500V | ||||||
| MPPT voltage range | 150~450V | ||||||
| Max.Input current | 18A | 18A*2 | |||||
| Short-circuit current | 22.5A | 22.5A*2 | |||||
| Number of MPPT | 1 | 2 | |||||
| PV strings per MPPT | 1 | 1/1 | |||||
| Product Model | tPower-NM5-3K-SH | tPower-NM5-3.6K-SH | tPower-NM5-4K-SH | tPower-NM5-4.6K-SH | tPower-NM5-5K-SH | tPower-NM5-6K-SH | |
| AC(On-grid) | |||||||
| Rated voltage | 230Vac | ||||||
| Frequency | 50Hz | ||||||
| Max.current | 15A | 18A | 20A | 22A | 25A | 27A | |
| Max.active power | 3300W | 3960W | 4400W | 5000W | 5500W | 6000W | |
| Max.reactive power | 3.3kVA | 3.96kVA | 4.4kVA | 5kVA | 5.5kVA | 6kVA | |
| Power factor | >0.99(Rated power)/(0.8leading~0.8lagging adjustable) | ||||||
| Harmonic(THD) | <3% | ||||||
| AC(Off-grid) | |||||||
| Rated voltage | 230Vac | ||||||
| Frequency | 50Hz | ||||||
| Max.Output current | 14A | 16A | 18A | 21A | 23A | 27A | |
| Max.active power | 3000W | 3600W | 4000W | 4600W | 5000W | 6000W | |
| Overload capacity | >200%,15sec | ||||||
| Power factor | ~1(0.8leading~0.8lagging) | ||||||
| Harmonic(THD) | <3% | ||||||
| Efficiency | |||||||
| Max.efficiency(%) | 97.6% | ||||||
| Max.Efficiency of Battery-AC | 94.5% | ||||||
| Protection | |||||||
| Grid monitoring | Yes | ||||||
| DC reverse connection protection | Yes | ||||||
| AC short-circuit protection | Yes | ||||||
| Leakage current protection | Yes | ||||||
| Surge Protection | DC Type ll/AC Type ll | ||||||
| Ground fault monitoring | Yes | ||||||
| DC switch | Yes | ||||||
| PV String current monitoring | Yes | ||||||
| AFCI protection | Optional | ||||||
| PID recovery function | Optional | ||||||
| System parameters | |||||||
| Operating ambient temperature range | -25~+60℃ | ||||||
| Humidity | 0~95% | ||||||
| Max.operating altitude | 4000m | ||||||
| Cooling method | Natural cooling | ||||||
| Display | LCD/APP | ||||||
| BMS communication | CAN/RS485 | ||||||
| Meter communication | RS485 | ||||||
| Communication | RS485/GPRS/WiFi(optional) | ||||||
| Weight | 20kg | ||||||
| Dimensions(W*H*D) | 427*554*198mm | ||||||
| Topology | Non-isolated | ||||||
| Protection degree | IP66 | ||||||
| Installation | Wall-mounted | ||||||
